Manufacture PVC Coated Military Anti-Climb 1830mm x 2500mm 4 v fold 100mm section mesh fence
1. Name: wire fence, Welded wire fencing, mesh fencing, Iron fencing,wire mesh fence
2. Material: Steel tube, steel wire, Q195/Q235
3. Size: 1830mm H x 2500mm L is normal, and can produce as your requirement.
| Curved Welded wire mesh Fence |
| Panel | Mesh | Wire Thickness | Surface Treatment | Panel Width | Folds NOS. | Panel Height | Fence Height |
| Mesh Panel | 50*100mm 55*100mm | 4.0mm 4.5mm 5.0mm 6.0mm | Galvanized and Electrostatic polyester powder coated or PVC coated | 2.5mm 3.0mm | 4 | 2000mm | 2700mm |
| 5 | 2300mm | 3200mm |
| 6 | 2600mm | 3700mm |
| V Panel | 2 | 530mm | 2700mm |
| 630mm | 3200mm |
| 730mm | 3700mm |
| Welded Wire Mesh Panel |
| Material | High quality low carbon steel wire Q235, Q195, S235J2 |
| Surface Treatment | Hot-dipped Galvanized then PVC coating Electric Galvanized then PVC coating Hot-dipped Galvanized or Electric Galvanized |
Fence Panels:
1>it has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels
2>it has 4 metal corners to keep the pallet more strong.
3>it has metal plate under the plastic bandage to reduce the apressure of fence panels.
4>it has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.

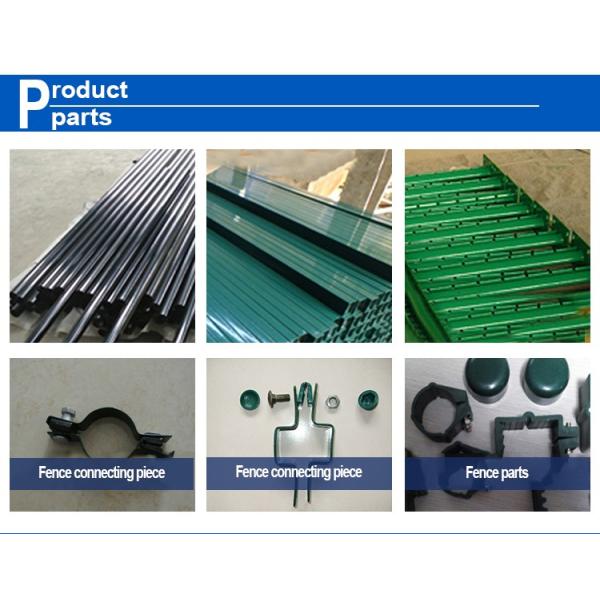

Fence Post:
Each fence post is covered by cap (save your installing time and cost of labor) then with plastic film, then metal pallet.
Accessories:
Clips and screws are packed by sets, plastic film + carton box.
Material: Low carbon steel wire and other materials
2.Process: Made through weaving, punching and welding.

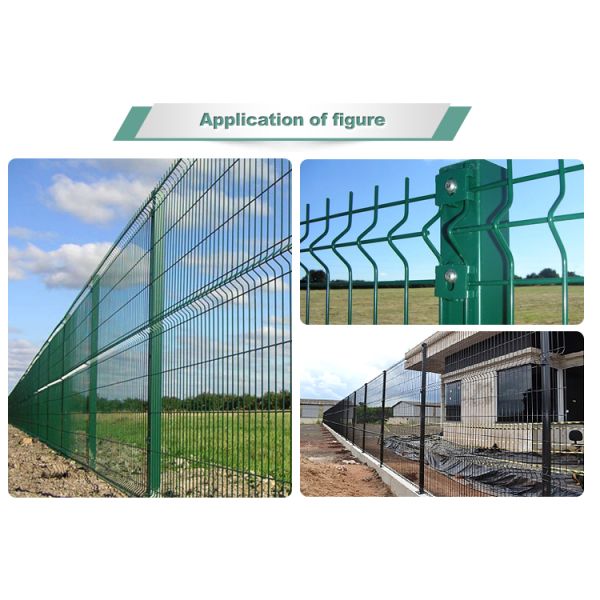

3.Application: Fencing and protection for the road, railway, airport, residence district, seaport, garden, feeding and husbandry
4.Product Features: Corrosion resistant, age resistant, sunshine proof, weatherproof.
5.Corrosion Form: Electric galvanized, Hot-dipped galvanized after welded, Powder coated, PVC coated
| Specification | |
| Wire Dia. | Mesh size | Panel width | Panel height | Fold no. | Post height | Post model |
| Fix 1 | Fix 2 |
| 4.0mm 4.5mm 5.0mm 5.5mm 6.0mm | 200*50mm 200*55mm 200*60mm 200*65mm | 2.0m 2.255m 2.5m 3.0m | 830mm | 2 | 1200mm | 900mm | Square post Peach post Round post Holland post |
| 1030mm | 2 | 1400mm | 1200mm |
| 1230mm | 2 | 1600mm | 1400mm |
| 1530mm | 3 | 2000mm | 1700mm |
| 1730mm | 3 | 2200mm | 1900mm |
| 1830mm | 4 | 2300mm | 2000mm |
| 2030mm | 4 | 2500mm | 2200mm |
| 2230mm | 4 | 2700mm | 2400mm |
| 2530mm | 5 | 3000mm | 2600mm |
