RAL 2009 Powder Coated Temporary Fencing Panels OD 32mm x 1.4mm Mesh 6cmx15cm diameter 3.2mm

Name: RAL 2009 Powder Coated Temporary Fencing Panels OD 32mm x 14mm Mesh 6cmx15cm diameter 32mm
Brand: LNF-NZ temporary fencing
Price: 8.88 USD

China RAL 2009 Powder Coated Temporary Fencing Panels OD 32mm x 1.4mm Mesh 6cmx15cm diameter 3.2mm wholesale

Brand Name : LNF-NZ temporary fencing

Model Number : 60mm*150mm*2100mm*2400mm

Certification : ASTM/AS4687-2007

Place of Origin : American ,Australia ,Canadan

MOQ : 500 liner meter

Price : 8.88$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 Steel Pipes and Wire

Mesh Opening : 2"x4"/50mmx100mm ,4"x12"/100mmx300mm 3"x6" 75mm x 100mm

Diameter : 4.00mm ,8 gauge wire

Type : Weld Mesh and Steel

Color : Available any Such as Yellow ,Black ,Blue ,Red etc

Warranty : 5-15 years depand on treatment

Customized : Available

Size : 6ftx10ft ,6ftx8ft,6.5ft x 9ft etc

Feet : 60mm x 8.00mm thick x 760mm length

Accessoires : Top Couper

Contact Now

RAL 2009 Powder Coated Temporary Fencing Panel

Temporary fencing is for temporary isolation, temporary partition, temporary enclosure, flexibility is extremely strong products. Mainly USES the detachable component will pick up the pieces and base or barrier protection column for the standard link, specific need can be easily removed, moving installation.

The main structure features: Mesh is small, the base safety performance is strong, beautiful modeling, customized production according to your needs.

Dimensions	2100mm(H)*2400mm(W)
Tubing	OD 32mm*2.00mm thick
Mesh Spacing	60mm*150mm
Infill mesh size	1736mm*2336mm
V wire number	36 sticks wire 4.00mm
H wire number	17 sticks wire 4.00mm
Finished	14 microns /100 gram/SQM
Weight of panels	20.5kg-22.0kg
Service life	Salt spray Testing result least 3 years
40HC container	560 unit if covered clamp and base
Packing	Metal Pallet wrapped with plastic film
Productions Time	All stocked
Ocean time	25 days to 35 days to any port of AU & NZ
What papers you provided after shipping containers
Main: Packing list, Commercial Invoice, bill of lading copy or draft for telex release one, balance papers Plus For NZ: Containers Declaration For AU: PKD - Packing Declaration 2016 and Certificated of Original

RAL 2009 Powder Coated Temporary Fencing Panels OD 32mm x 1.4mm Mesh 6cmx15cm diameter 3.2mm

Temporary fencing from craft to see can be divided into two kinds
1. The welding nets temporary fence

2. Network weaving a temporary barrier

Temporary Fencing Panel

1. Material: Low carbon steel wire, hot-dipped galvanized wire

2. Wire diameter: 3mm, 3.76mm, 4mm, 4.5mm...etc

3. Hole distance: 50*50mm, 75*75mm, 50*100mm, 75*100mm, 60*150mm,...etc

Temporary Fencing Pipe

1. Pipe out diameter: 30mm, 32mm, 38mm, 40mm, 42mm, 48mm, ... etc

2. Pipe thickness: 1.7mm, 1.8mm, 2.0mm, etc

Temporary Fencing Clips

Galvanized iron bars 4mm thickness

Special specification can be customized

Temporary Fencing Usage

1.to prevent materials, rubbish from escaping from a worksite

2.to secure your construction site and equipment from theft

3.to prevent an operation from impacting outside

Temporary Fencing Advantages

1.Easy handling, corrosion resistance, aging resistance, weather resistance

2. Quick installation & moval

Other products:

Series of welded wire mesh, Barbed Wire, Fence, Chain Link Fence, Temporary Fence, fiberglass mesh.etc

Different specifications are available according to the customers' requests.

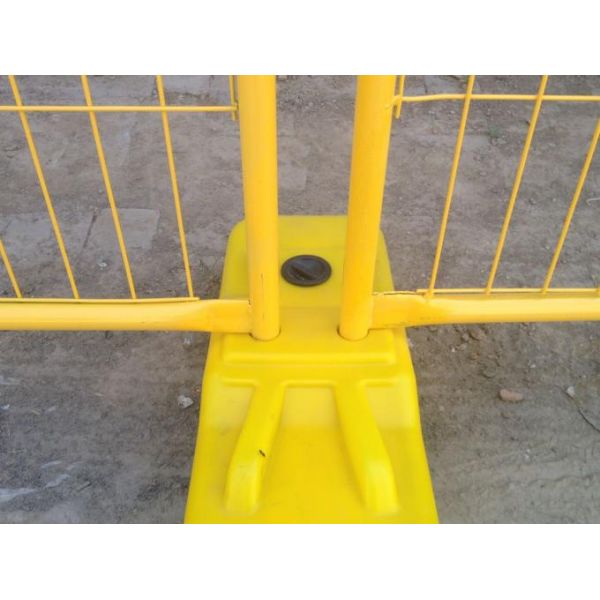

Temporary Fence Base

Temporary Fencing Block -Blow Molding fill Water		Suit pipes
Materials	High-density polyethylene (HDPE)	OD 32mm OD 38mm OD 40mm OD 42mm OD 48mm
Color	Green, Yellow, Black
Weight	26kg after filled water
Packing	Stacking together a pallet
Treatment	UV 3 ,UV 4 UV 5
Size of foot	600 x 220 x130mm
Packing	Metal pallet

Temporary Fencing Block --Recycled Rubber Foot		Suit pipes
Materials	Recycled rubber foot	OD 32mm OD 38mm OD 40mm OD 42mm OD 48mm
Color	Green, Yellow, Black
Weight	19KG
Packing	Stacking together a pallet
Treatment	Oil painted
Size of foot	767 x 192 x 126mm
Packing	Metal pallet

Temporary Fencing Block - Injection Molding foot		Suit pipes
Materials	High-density polyethylene (HDPE)	OD 32mm OD 38mm OD 40mm OD 42mm OD 48mm
Color	Green, Yellow, Black
Weight	30kg
Packing	Stacking together a pallet
Treatment	UV 3 ,UV 4 UV 5
Size of foot	560 x 245 x 130mm
Packing	Metal pallet

Temporary Fence Clamp

Temporary Fencing Clamp-100TYPE
	Thickness	4.00mm
	Center distance	100mm ( pipes center to center) /OVERALL LENGTH120MM
	Technical	Punched
	Materials	Q195 Q235 steel
	Design	Australia
	Made Country	China
	Treatment	14 microns, 42 microns hot dipped galvanized electrostatic powder coated
	Application	Secured Temporary Fence panels, and Bracket Stay, Gate
	Weight	0.45kg /set 2 pairs included big caps bolt and nuts

Temporary Fence Gates

Temporary Fence Gates
	Pedestrian Gates Frame pipes OD 32 x 2.00mm Mesh Opening :60mm x 150mm Diameter :4.00mm Hot dipped galvanized to be 14 microns, 42 microns, 84 microns Accessories chain padlocking and coupler hinged as clips foot Panels size 2100mm x 1000mm width 1 pieces Standard AS4687-2007
	Vehicle gates Frame pipes OD 32 x 2.00mm Mesh Opening :60mm x 150mm Diameter :4.00mm Hot dipped galvanized to be 14 microns, 42 microns, 84 microns Accessories chain padlocking and coupler hinged as clips foot Panels size 2100mm x 1000mm width 1 pieces Standard AS4687-2007

tags: powder coated temporary fence

RAL 2009 Powder Coated Temporary Fencing Panels OD 32mm x 1.4mm Mesh 6cmx15cm diameter 3.2mm Images
